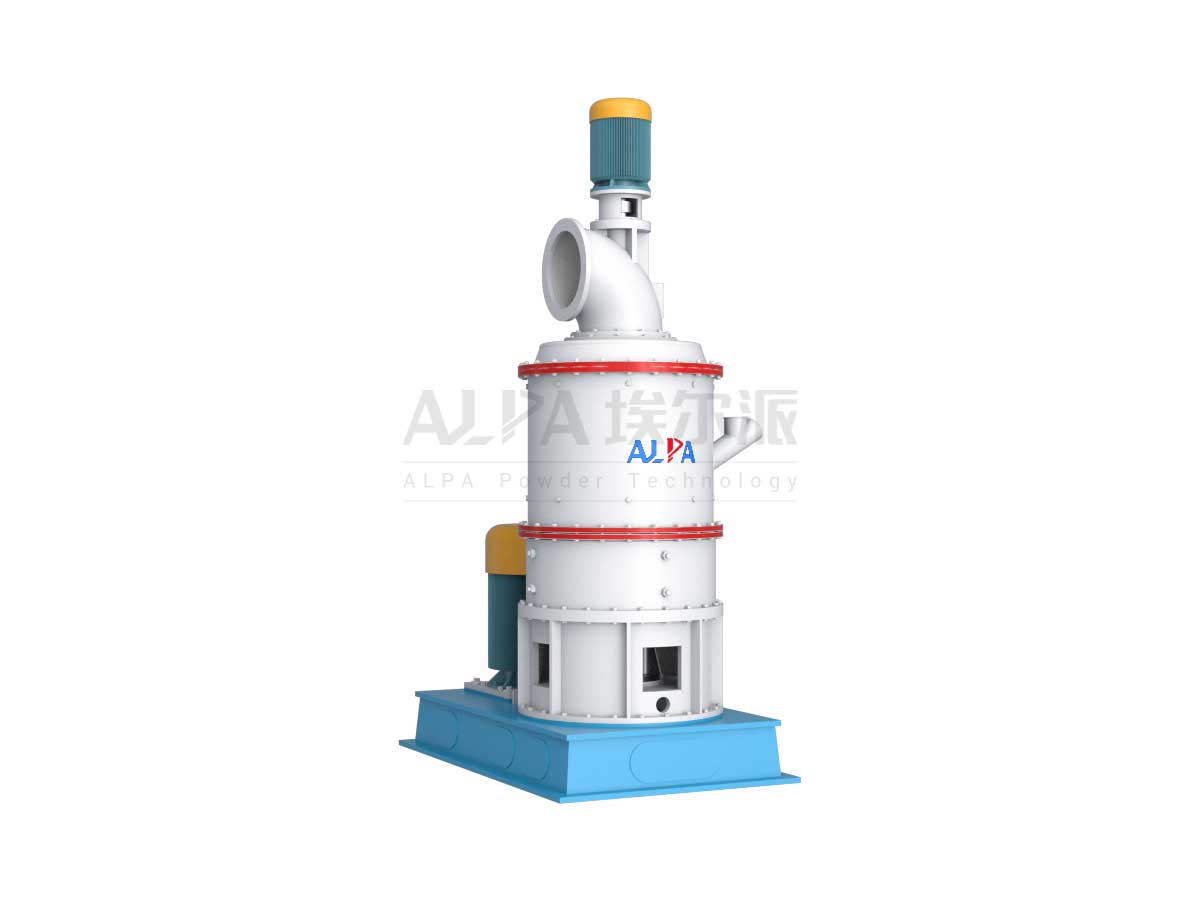

Ring-Roller Mill

Relying on the grinding roller orbital revolution and rotation on the grinding ring track to finish grinding. Built-in classifying wheel,available D50:2-45micro, Favorable product granularity and stability.

Product features: High production efficiency, low operation cost; unique structure of grading wheel, good classification effect; high recovery rate of fine powder, clean and environmental protection, PLC control system, easy operation.


Application:Widely used in calcium carbonate (calcite, marble, limestone, chalk), barite, kaolin, dolomite, magnesite, alumina, superfine cement, slag, steel slag and other industries.

Unique advantages

High crushing ratio and high energy utilization rate

The calcium carbonate particles with feed size less than 10 mm can be processed into micro powder of < 10 μm at one time (under the standard of 97% passing rate), and the fine powder of - 2.5 μm accounts for about 40%, large surface area. It has the advantages of high efficiency and low energy consumption in the production of powder by high speed impact mill, and can reach the fineness of fluidized bed jet mill。

Favorable product granularity and stability.

The product has good particle size and stability, which is the ideal equipment for non-metallic fine powder production by dry process. Host with built-in classifying mechanism, with unique classifying wheel structure, good classifying effect and no large particle pollution. The fineness of the product can be adjusted according to the needs. It can produce d97:3-8 μ m fine powder and d97:10-40 μ m ordinary powder.

More environmentally friendly, energy saving

Under the condition of negative pressure production, equipped with high efficiency dust collector, the working environment dust is less; the use of semi-automatic control and unique technology, greatly improve the production efficiency, is a kind of fine grinding equipment with low energy consumption.

Little wear

The grinding wheel and ring are made of special wear-resistant alloy steel, and the service life is increased by 2-3 times.

Working principle

Transmission device connects with main shaft. The top of shaft connects with rotor structure. The rotor structure has peripheral shaft. Peripheral shaft is installed with roller. When the main shaft starts to rotate, peripheral shaft rotates too, which would make the rollers revolve around main shaft and also rotate round peripheral shaft. The roller would create strong centrifugal force during the rotation and revolving, and grind material with stator. The ground material would fall down to the distribution plate. The distribution plate and the main shaft would rotate at the same time, and bring material to the round ring. Under negative pressure, it would go along the distribution ring to the classifier chamber. Qualified fine powder would go through the classifier wheel and into the collector, while coarse powder would fall down back to the milling chamber for further grinding.

Technical parameter

Model

RLM89

RLM189

RLM219

Mesh

D97

Capacity(kg/h)

kWh/ton

Capacity(kg/h)

kWh/ton

Capacity(kg/h)

kWh/ton

600

28μm

4500~5000

30

800

18μm

2500~2800

43

3500~4200

42

3500~4200

40

1250

10μm

1500~1800

67

2000~2500

75

2000~2500

72

1500

9μm

1000~1300

92

1500~2000

95

1600~2100

92

2000

7.8μm

650~750

125

1000~1500

113

1100~1600

110

2500

5.5μm

600~650

135

800~1200

123

900~1300

119

Power

152kW

152kW

237kW

237kW

237kW

237kW

Note: the above data is subject to the heavy calcium carbonate (feed particle size < 10 mm, Mohs hardness < 5%), affected by different materials and production areas, the above data is for reference only. The particle size was determined by OMAX and Malvern.

Product Atlas
